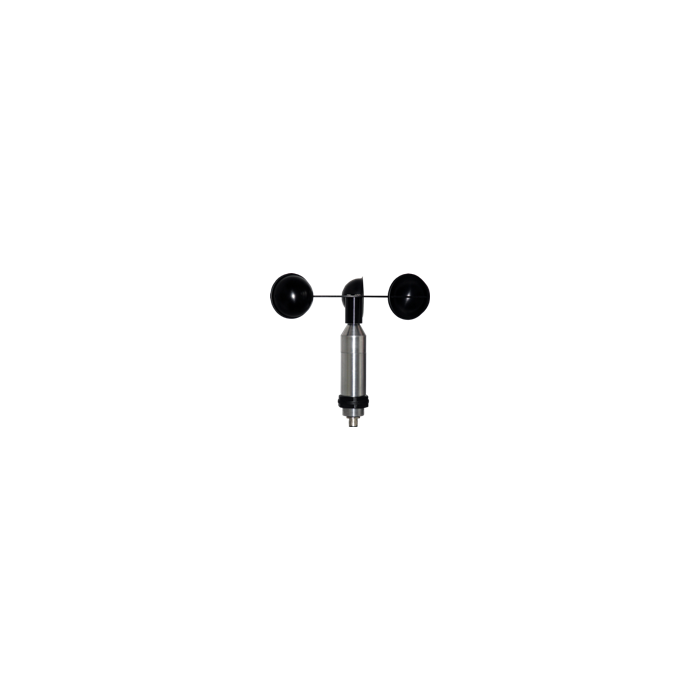

Highly precise, robust ...
and professional are these new wind sensors of the EORA-family. The low power consumption of < 2 mA makes this sensor ideally suitable for solar powered applications. The sensor is completely made of metal and if necessary the cup rotor is easy to change in the field.
- 4...15 VDC
- low power consumption < 2 mA
- all-metal housing made of seawater resistant aluminium
- on site changeable cup rotor made of seawater resistant aluminium
- protection class IP 65 in upright position
| Wind sensors EORA | ||
|---|---|---|
| Wind direction | Wind speed | |
| Measuring range | 0...360° | 0.4...55 m/s |
| Accuracy | < ± 2° | < ± 0.5 m/s |
| Resolution | 1° | < ± 0.1 m/s |
| Starting value | 0.4 m/s | 0.4 m/s |
| Output | wind direction: 0...2.5 V = 0...360° • wind speed: 0...2.5 V = 0...55.55 m/s | |
| Strongest wind impact velocity | 80 m/s | |
| Current consumption | < 2 mA (low power) | |
| Measuring principle | magnetic | |
| Dimensions | wind direction: wind vane L 230mm - H 256mm • wind speed: cup rotor Ø 108 mm - H 192 mm | |
| Housing | seawater resistant aluminium • IP 65 • for bores with sea water resistant aluminium • IP 65 • for bores with Ø 30 mm at max. 10 mm material thickness • incl. plug connector | |
| Weight | wind direction: approx. 0.95 kg • wind speed: approx. 0.90 kg | |
| Included in delivery | 1 sensor • 12 m cable • with 4 pin M12 plug connector | |
 Mast adapter
Mast adapter Ø 50mm |
 Masts and traversesFurther traverses and masts with different heights and accessories on request. |
|
