TECHNICAL DATA
A148 - LOCKING HANDLE WITH THREADED INSERT
MATERIAL:
Reinforced polyamide.
Oils and greases resistant.
SURFACE:
Satin.
COLOUR:
Black (RAL 9011).
CENTRAL CAP:
Grey polyamide (RAL 7035 code 13).
MAIN INSERT:
Brass blind threaded bush.
SPECIAL REQUESTS:
• It is possible to supply the inserts in different
materials, on request and for quantities.

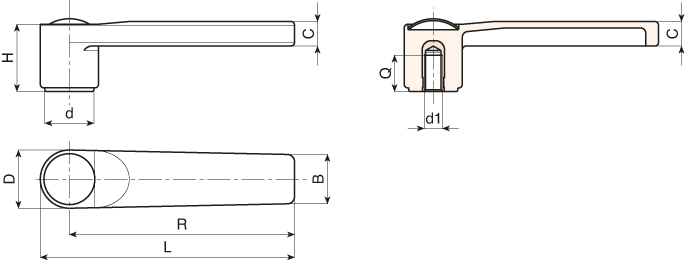

DRAWING
A148 - LOCKING HANDLE WITH THREADED INSERT
MATERIAL:
Reinforced polyamide.
Oils and greases resistant.
SURFACE:
Satin.
COLOUR:
Black (RAL 9011).
CENTRAL CAP:
Grey polyamide (RAL 7035 code 13).
MAIN INSERT:
Brass blind threaded bush.
SPECIAL REQUESTS:
• It is possible to supply the inserts in different
materials, on request and for quantities.
DRAWING
| Stock | Art. | L | R | H | D | c | B | h1 | d | d1 6H | Q | Weight (g) |
| A148125.TM1001 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27,5 | M10 | 20 | 78 | |
| A148125.TM1201 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27,5 | M12 | 18 | 84 | |
| A148125.TM1401 | 139 | 125 | 37 | 31 | 13 | 26 | 35 | 27,5 | M14 | 19 | 90 |
