可互换的换能器 EJH-68601-14 订购编号: EJH-68601-14
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

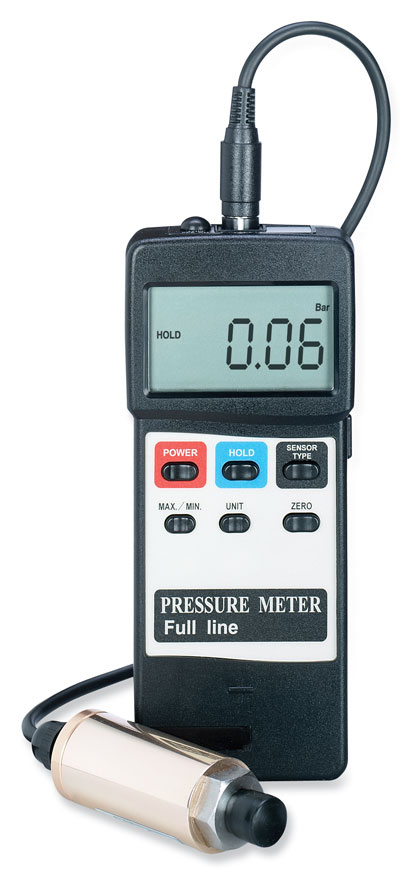

Interchangeable Transducer, 0 to 725 psi
-
- Five interchangeable transducers provide excellent versatility.
- Cover a wide range of pressure readings with a single meter!
- Meter displays eight types of pressure units.
- Excellent chemical resistance with 303 stainless steel transducers
- Easy push-button zero
Meter features RS-232 interface (order cable separately below), data hold, low-battery indicator, and automatic power off. Choose and order interchangeable transducers separately.
| Specifications | ||
| Product Type | Pressure Transmitter | |
| Media compatibility | liquids or gases | |
| Unit of Measurement | bar, psi, kg/cm2, mm Hg, " Hg, meter H2O, " H2O, atm | |
| Resolution | 1.0 psi | |
| Range | 0 to 725 psi | |
| Output | RS-232 | |
| Process connection | 1/4" PS NPT(M) | |
| Battery life | Approximately 228 hours | |
| Accuracy | 0.75% full-scale | |
| Power | one 9 V battery (included) | |
| Model | 840070 | |
| Qty/ea | 1 | |
| Brand | Sper Scientific | |
| Display | dynamic 4-digit LCD, 5/8"H (1.6 cm) | |
Calibrations
InnoCal, NIST Calibration Service for Pressure/Vacuum Gauges, = 0.75%
