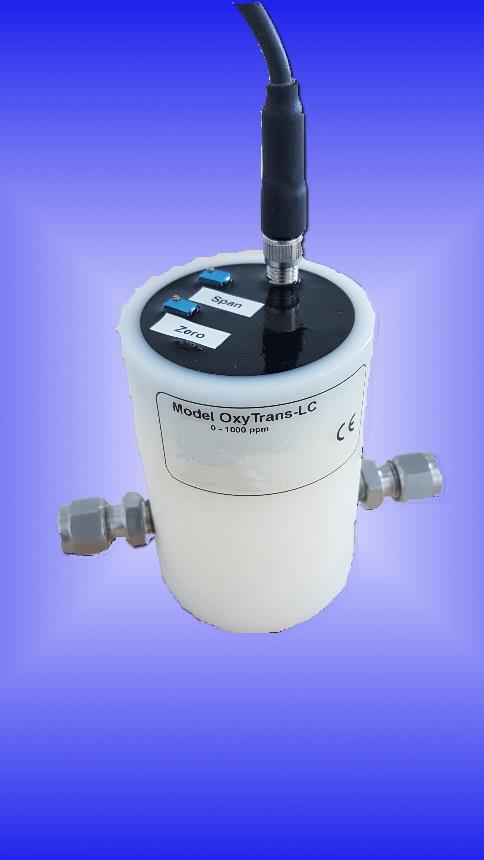

OxyTrans LC OEM
4 – 20 mA Loop Powered two wire Oxygen Transmitter
Two Wire Process Oxygen analyzer
The Model OxyTrans LC is simple, accurate and economic measurement of Oxygen at trace (ppm) levels and % levels.
Four User Specific Measuring Range Offered
The OxyTrans LC is offered in 4 different measuring ranges: 0-100 ppm, 0-1000ppm, 0-10000ppm and 0 – 25% of oxygen. The range must be specified at the time of order.
Sensor
The OxyTrans LC uses a special fuel cell to measure the oxygen concentration. The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life.
Calibration
The calibration of the instrument for trace oxygen(PPM) measurements in gas, should be done with a calibration gas. The concentration can be chosen freely within the measuring range.
In the percent range the unit can be calibrated with air.
Features
- compact
- inexpensive
- Sensor with long operating life
- IP65 enclosure
- reverse voltage protection and temperature compensation
- no cross sensitivity to H2 gas
Specification
Measuring ranges
ppm : 0 – 100; 0 – 1000;
0 – 10.000 ppm O2
% : 0 – 25 % O2
Calibration : with calibration gas, air
Accuracy : +/- 2% FSD T= 25C.
+/- 5% FSD 0>T>50°C
Response time:
90 % FSD at 25°C
0-100 ppm < 20 s
0-1000 ppm < 10 s
Operating Temperature:
0 – 50°C
Pressure:
0.1 – 1 bar
Signal output
4 -20 mA/DC looped powered
Voltage:
18 – 35 VDC
reverse voltage protection
up to 40VDC
Load:
typ. 470 Ohm,
max. 750 Ohm
Oxygen Sensor:
Micro-Fuel Cell,
Housing:
IP65
Size:
70mm x 60mm (H x W)
Weight:
0.3 kg
Typical
- different sensors available: 16T303 inert gas in the ppm ranges (A), 16T304 traces of acidic gases in the PPM range(B), 16P306 for inert gases in the % range(C), 16P307 for acidic gases in the % range(D)
- 4 different Measuring ranges
- synthetic material Cell block
Applications are found in
- Nitrogen plants
- Gas manufacturers’
- Metallurgical industries
- Chemical industry
- Heat treating and bright annealing
- Reflow ovens
