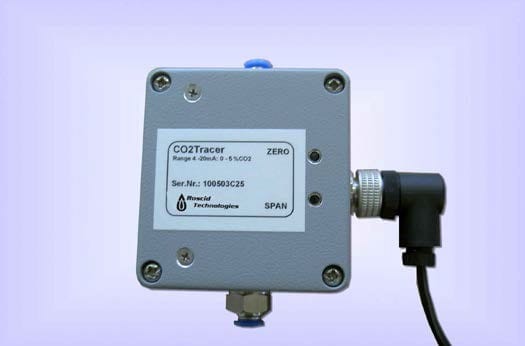

CO2 Tracer
The Model CO2Tracer is simple, accurate and very economic measurement of CO2 % levels.
The Model CO2Tracer is simple, accurate and very economic measurement of CO2 % levels.
Specification
- Measuring rangesall ranges between : 0 – 500 ppm CO2 most used
- Ranges: 0-5%, 0-25%
- Calibration : with calibration gas ifnecessary
- Accuracy : +/- 2% FSD T= const. +/- 5% FSD 0>T>50°C (ppm)
- Response time : 90 % FSD at 20°C < 30 sec 90%
- Operating : 0 – 50°C Temperature
- Warm up time : 1 minute
- Pressure : 0,1 – 1 bar
- Signal output : 4 -20 mA / DC
- Alarm value (if desired): 22,8 mA (Standard) or 3,4 mA
- Voltage : 10 – 35 VDC
- reverse voltage protection up to 40VDC
- load : typ. 470 Ohm,
- 750 Ohm
- Display : no Display
- oxygen sensor : NIR
- housing : IP65
- Size : 80 x 75 x 55 ( B x H x T )
- Enclosure : aluminium
- Connection : 6 mm or ¼” tubing
- Weight : 0,3 kg
