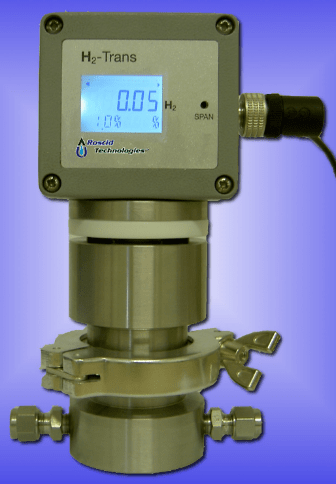

H2Trans-ZO

4 – 20 mA Loop Powered two wire Hydrogen Transmitter to be used in application where the O2 level is 0 ppm

The Model H2Trans is simple, accurate and economic measurement of Hydrogen at trace levels.

A simple Display and one point calibration allow easy and fast start-up of the instrument.

© User specific measuring range

The unit can be ordered with either of the following two ranges: between 0 ppm – 100 ppm or 0-10000ppm
Sensor

The H2Trans uses a special fuel cell to measure the hydrogen concentration. The sensor meets the industrial requirements for accuracy, sensitivity, easy to use and operating life.

Calibration

The calibration of the instrument for trace hydrogen measurements in gas, should be done with a calibration gas. The concentration can be chosen freely within the measuring range.

In the percent range the unit can calibrated with air.

© Features

• Compact
• Inexpensive
• Sensor with long operating life
• IP65 enclosure
• Reverse voltage protection and temperature compensation

Flow-through measuring cell in Stainless Steel

• The measuring cell is modular and is made of stainless steel
• A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit

© Flow-through measuring cell in Stainless Steel

• The measuring cell is modular and is made of stainless steel it is available with KF Flans or with sample chamber an tube fittings 6 mm
• A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit

Applications:

He Recycling
Ar Recycling
