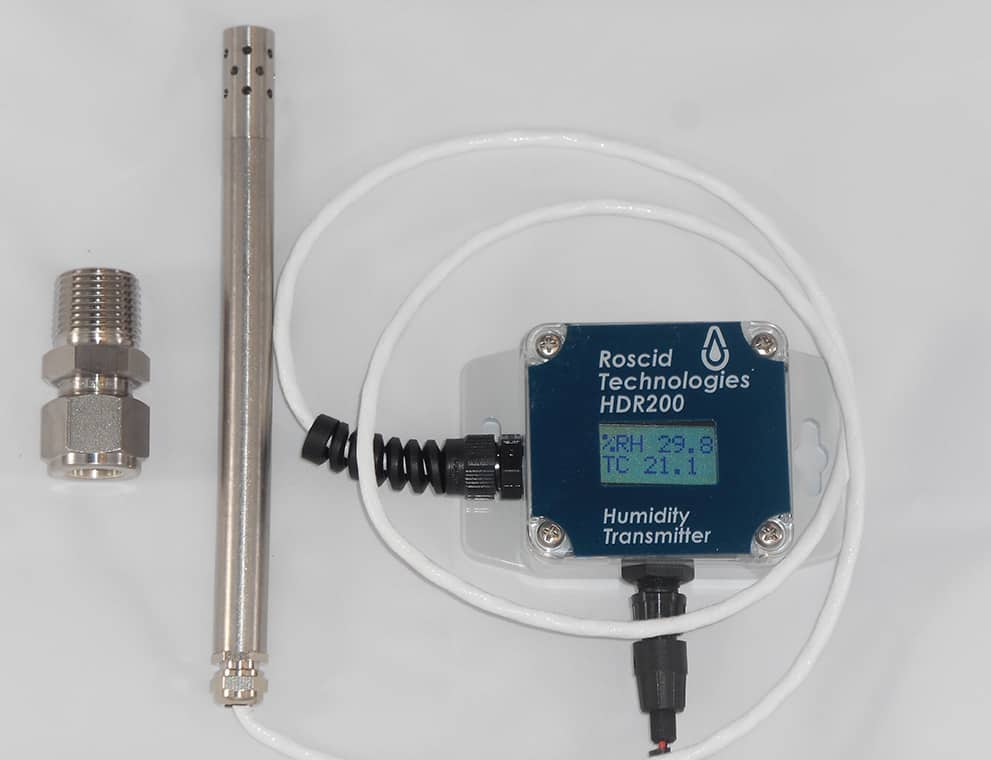

HDR 200 Series

Humidity and Dew Point Transmitters

HDR200 series is the perfect unit for applications for compressed air, dryers and environmental chambers

User selectable switches for C or F, and RH or dew point

    Dew point: -60C to 40C (factory default)
    RH 0-95%RH (non-condensing)
    Unit Displays Dew point and temperature or RH and temperature
    ½”NPT Fitting included
    Calibration done at -60C
    Pressure Rating: 750PSI
    Material: 304 SS
    Operating Temperature: 0 to 200C
    Mesh Filter Top (SS)-removable-washable
    Dew point accuracy:
        +/- 1.0C from
        +40c to -20C+/- 3.0C <-20C
    RH Accuracy: +/-1% from 15C to 40C (0 to 90%);+/- 2% >90% (non-condensing) <15C, >40C temperature, RH accuracy is +/-2%
    NIST Calibration Certificate included with each unit
    2 Line LCD
    Resolution: 0.1
    One 4-20mA loop powered output
    24VDC (typ)- 12-28VDC
    Dimensions of Probe: Length:
        4” (10.16cm)
        O. D.: 0.5” (1.27cm)
    Enclosure Dimensions: 3.5”L X 2.5” W (Display dimension)
    Enclosure Mounting Centers: 3.1” (Display mounting centers)
    Cable length is 1M (additional lengths are available, consult factory)

Humidity and Dew Point Transmitters

HDR200 series is the perfect unit for applications for compressed air, dryers and environmental chambers

User selectable switches for C or F, and RH or dew point

Dew point: -60C to 40C (factory default)
RH 0-95%RH (non-condensing)
Unit Displays Dew point and temperature or RH and temperature
½”NPT Fitting included
Calibration done at -60C
Pressure Rating: 750PSI
Material: 304 SS
Operating Temperature: 0 to 200C
Mesh Filter Top (SS)-removable-washable
Dew point accuracy:
- +/- 1.0C from
- +40c to -20C+/- 3.0C <-20C
RH Accuracy: +/-1% from 15C to 40C (0 to 90%);+/- 2% >90% (non-condensing) <15C, >40C temperature, RH accuracy is +/-2%
NIST Calibration Certificate included with each unit
2 Line LCD
Resolution: 0.1
One 4-20mA loop powered output
24VDC (typ)- 12-28VDC
Dimensions of Probe: Length:
- 4” (10.16cm)
- O. D.: 0.5” (1.27cm)
Enclosure Dimensions: 3.5”L X 2.5” W (Display dimension)
Enclosure Mounting Centers: 3.1” (Display mounting centers)
Cable length is 1M (additional lengths are available, consult factory)
