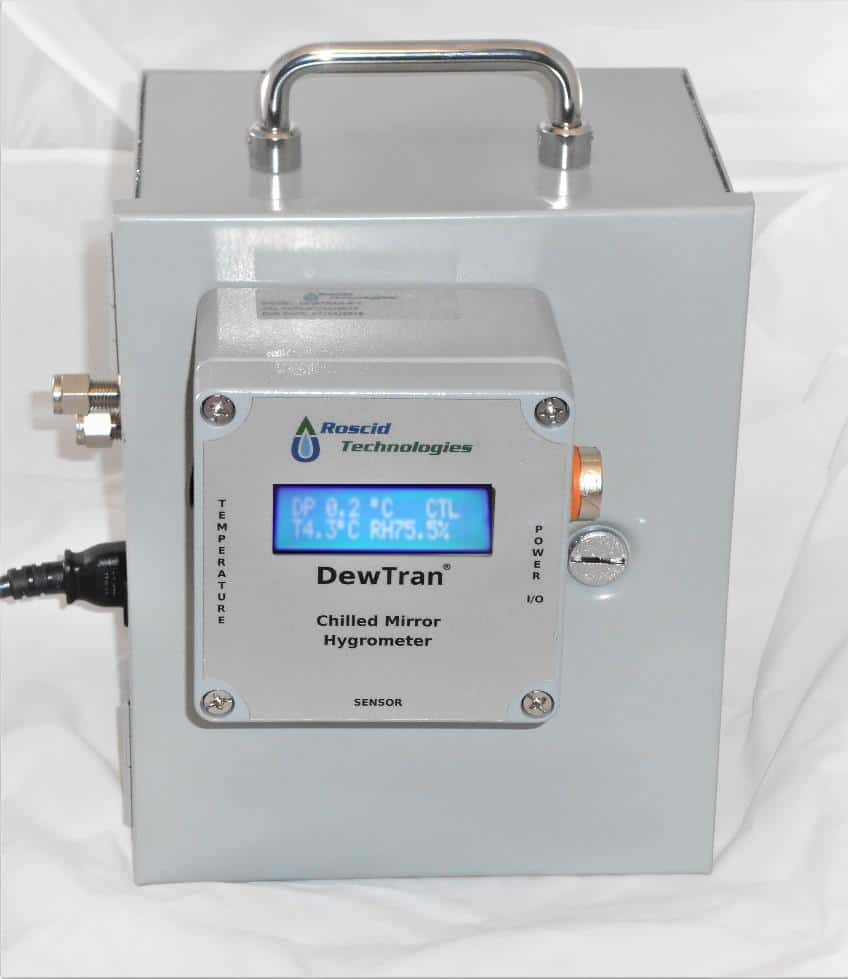

DewTran®-HB

Heated Chilled Mirror System for elevated dew points above ambient.

The DewTran®-HB is a temperature controlled 2 stage chilled mirror hygrometer suited to measure elevated dew points up 95⁰C non-condensing environments. Dew point measurement range from -30C to 95C.The chilled mirror uses a fundamental principle to accurately measure the dew point/frost point in a gas sample. It is typically used a reference standard for dew point over the measurement range. It is very responsive and repeatable to +/-0.05⁰C and easy to maintain.

The DewTran®-HB has a built in automatic reference cycle (ARC) method that balances the optical signal for temperature change and mirror contaminants.

The unit includes a heated stainless-steel sintered filter and is rated to filter particles down to 7 microns. The filter element is easy to remove and clean.

The temperature inside the sensor housing is controlled via the RS232 communications.

Calibration/Digital Interface
NIST Traceable Calibration.
RS232-bi directional.

Applications:
Heat Treating
Aerospace
Combustion Gas
In Line engine monitoring
Furnace monitoring
Rubber/Plastic Pellet Dryers
Petrochemical
Industrial gas
Power Generation

System includes:
Heated Dewpoint System
10 ft heated hose
