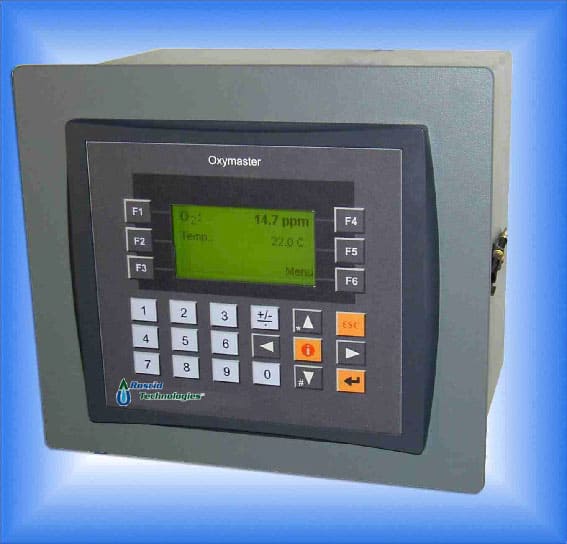

Oxymaster 16TW
The Model Oxymaster is made for fast, accurate and economic measurement of Oxygen at trace levels. A simple menu-driven software, touch pad and large LCD-display allow easy and fast start-up of the Oxymaster instrument.
The Model Oxymaster is made for fast, accurate and economic measurement of Oxygen at trace levels. A simple menu-driven software, touch pad and large LCD-display allow easy and fast start-up of the Oxymaster instrument.
Specification
- Measuring range: 0 – 8000 ppb O2
- free programmable lowest range 0-10 ppb
- Calibration : saturation on air
- Accuracy: +/- 2% FSD ( T= const.) +/- 5% FSD
- Resolution: 0,1 ppb to 100 ppb 1 ppb from 100 to 8000 ppb
- Response time: 98 % response in 90 seconds at 25°C
- Operating temperature: 5 – 45°C
- Sample pressure: 0,2 – 1 bar Output signal: 4 -20 mA/DC
- Display: Graphic
- Alarm: 1 free programmable Alarm
- System diagnostics: Self diagnosis with relay output
- Data Logger : 10000 readings, Interval
- programmable Voltage: 85 – 230 VAC, 44/60 Hz 24 VDC
- Sensor warranty maintenance: 1 year under normal use and
- Size ( Mounting size ): 9 x 7.5 x 7.5 ( W x H x D )
- Weight: 7 lb.
