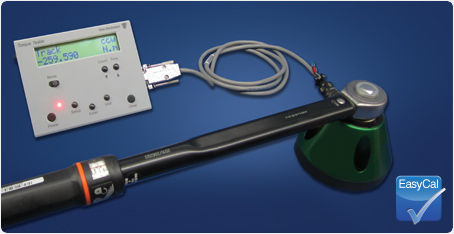

• The TTS-100 is a torque calibration system that offers a solution for torque measurement applications. The torque tester unit provides an easy to use interface that connects to a dedicated torque transducer to perform the calibration of a wide range of torque tools. The system accuracy is ± 0.5% of reading from 10% to 100% of full scale. The tester unit has three operating modes that are Peak, Track and First Peak. It monitors torque and pulse count, and displays both the peak torque and the number of pulses performed during a preset time frame to reach the final torque value.

  The accompanying torque transducers are bench mounted calibration instruments designed for the calibration of torque wrenches, torque screwdrivers, and electric & pneumatic screwdrivers. Transducers are available ranging from 1.5 cN.m (2 ozf.in) up to 27,000 N.m (20,000 lbf.ft). Each transducer is bi-directional with a female square drive, and connect to the tester via a port on the side of the unit. Bench mounts are available to provide a firm base for each transducer.

  The TE torque calibration system is EasyCal software compatible with connection via USB on the tester unit. Automating the calibration process provides increased speed of calibration and consistency of results. Produce calibration certificates and reports to ISO 9001, ISO 17025, and other international quality standards.

  Features:

  • Calibrate torque wrenches, pulse tools, hand screwdrivers, and power tools

  • Complete solution with torque transducers, mounts and calibration software available

  • System Accuracy ± 0.5% of reading from 10% to 100% of full scale

  • Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)

  • Selection of three operation modes: Peak, Track, First Peak

  • Simple operation with easy to use menus and calibration prompts

  • Auto filter frequency selection based upon tool type being used in Peak mode

  • Large easy to read eight digit LCD display

  • Compact, lightweight unit supplied with carry case

  • USB interface and EasyCal calibration software compatible
