7195 Benchtop Hydraulic Pressure Calibration Pump    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

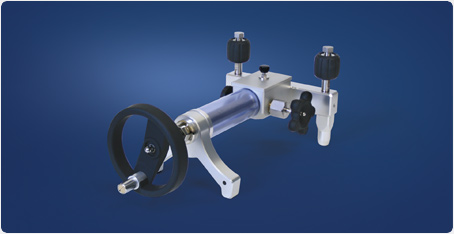

  • The 7195 benchtop pressure pump is a dual pressure source for hydraulic pressure applications. It is simple operation and achieves high pressure smoothly and easily. For media it uses oil or deionized water, and provides 85% vacuum and positive pressure 700bar (10,000psi).

    A high-quality screw press is designed for fine pressure adjustment, with adjusting resolution up to 0.001bar. For calibration applications the double output manifold provides finger-tight connections for a reference gauge and device under test. Further user friendly features include the ergonomic handwheel for coarse pressure adjustment, fine adjust handles, release valve and isolating valve.

    The 7195 is comfortable and simple operation, with features that make it ideal for calibrating pressure transducers, gauges, and other pressure instruments. It is also ideal for use as a benchtop gauge comparator. Time Electronics also offer a range of digital pressure gauges ideal for use with the 7195. The 7096 is a high-performance gauge for pressure up to 700bar, with 0.2% full scale accuracy.
