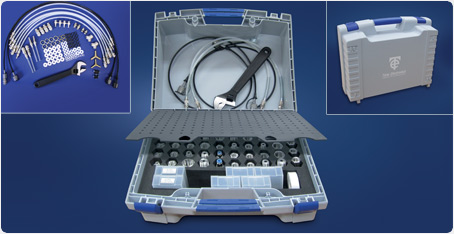

  • The 7198 is a comprehensive selection of pressure adaptors, manufactured from stainless steel. Together with a range of accessories and hoses, the 7198 enables rapid connection of pressure instrumentation during calibration and test applications.

    Housed in a rugged plastic case, the kit comprises of BSP (parallel), NPT (tapered) and metric threads, with both male and females threads terminated by a ¼ BSP male. The use of ¼ BSP (female) couplers allows unlimited combinations of threads to accommodate any possible requirement.

    A combination of low pressure hoses with quick connectors and high pressure Minimess 1620 hoses ensure complete connectivity between the pressure source and the unit under test.

    The 7198 is suitable for use with the Time Electronics CalBench and with pressure generating devices such as portable and benchtop pressure pumps. It complements our range of pressure calibration instruments and is an asset to any instrumentation workshop. Compact and practical, the 7198 offers a quick solution to pressure component requirement in both the field and laboratory.






     Definition of types of adaptors according to EN 10226 or ISO 7:

    • G = external + internal parallel (ISO 228)
    • R = external taper (ISO 7)
    • Rp = internal parallel (ISO 7/1)
    • Rc = internal taper (ISO 7)
    • R2 = external parallel

    General Information
    Case Dimensions: 392 x 313 x 190mm / Case Weight: 7.18kg
    Shipping Information:
    Packed Dimensions: 410 x 215 x 350mm / Packed Weight: 7.68kg
