  • Calibrator / DMM / Touch Screen PC

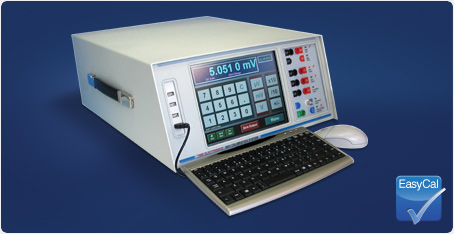

    The 5051Plus combines a precision multifunction calibrator, 6½ digit multimeter, and industrial touch screen PC. Offering high performance calibration and maximum functionality, it provides the foundation for an efficient calibration program. By integrating the calibrator, DMM and PC in one unit minimal bench space is used in the laboratory. This is also beneficial for on-site calibration work as the 5051Plus replaces the need for transporting several instruments. The unit can be set up in a compact workspace and calibrate a wide range of electrical, electronic and process instruments and devices, quickly and efficiently.

    Calibrator
    The standard unit is fitted with AC/DC voltage to 1050V, AC/DC current to 22A, variable resistance to 120MΩ, decade resistance to 1GΩ, capacitance and inductance, conductance, thermocouple simulation and oscilloscope calibration. Also supplied is a clamp meter adaptor for clamp calibration up to 1100A, and test lead set to provide the neccessary connections for nearly all applications. Further enhancements can be made by optional adaptors and accompanying benchtop instruments. Both manual control and EasyCal software control is available.

    Digital Multimeter
    The internal 6½ digit multimeter measures DC voltages to 1000V, AC voltages to 750V, resistance to 100MΩ, and frequency to 300kHz.
    Operation can be performed using the manual control program or EasyCal software.

    Touch Screen PC
    The 5051+ features an integral control centre that is a PC with a 64 bit dual core processor, running Windows 10. The calibrator and DMM control programs allows the wide range of functions to be easily selected using mouse, keyboard, or touch screen. As a complete workstation the 5051Plus is supplied with printer and connectivity kit for producing certificates and reports, as well as a label printer and barcode reader.

    Multi Instrument Calibration
    The 5051Plus can calibrate multimeters, frequency meters, ohm meters, AC/DC millivoltmeters, decade boxes, thermocouple indicators and sensors, clamp meters, tacho meters, oscilloscopes, timer counters, RTDs and much more. Accompanying instruments and adaptors can be added for power supplies, pressure devices, and more.

    EasyCal Software - Manage, Automate and Optimise the Calibration Process
    The 5051Plus comes pre-loaded with Time Electronics’ EasyCal software. Automate the calibration process and increase speed of calibration and consistency of results. Easily produce calibration certificates and reports to ISO 9001, ISO 17025, and other international quality standards. Data can be transferred to desktop PCs/servers using USB memory or connected to a LAN via the ethernet connection located on the rear of the unit.
