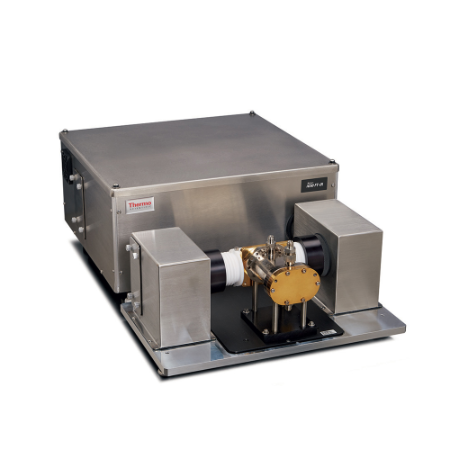

Nicolet™ iG50 FT-IR Spectrometer

Thermo Scientific™ 相关应用： Environmental

Get the power and sensitivity of a research system with the robustness of an industrial analyzer. The Thermo Scientific™ Nicolet™ iG50 FTIR Spectrometer extends the premium performance of the Thermo Scientific™ Nicolet™ iS50, our industry-leading R&D spectrometer, onto a rugged, user-configurable FTIR platform designed for industrial applications. The system is highly configurable, compact, and rack mountable. It offers customized solutions for easy integration into your process monitoring systems, making the Nicolet iG50 spectrometer the ideal choice for OEM integration.

联系我们获取支持 ›

货号	产品规格	描述	单价 (CNY)
IQLAADGAAGFACKMBIC	-	Nicolet iG50 FT-IR Spectrometer	申请报价

产品规格	-
高度（英制）	9.75 in
高度（公制）	25 cm
重量（英制）	63 lbs
重量（公制）	29 kg
宽度（英制）	17.75 in
宽度（公制）	45 cm
射束分离器	Options Ge/KBr 7800–350 cm^-1 ZnSe 7800–550 cm^-1 (non-hygroscopic)
型号	Nicolet iG50 Spectrometer Base spectrometer, front collimated beam output, no sampling interface. Options include Ge/KBr or ZnSe beamsplitter and CaF₂ coated KBr or ZnSe windows. Right side beam output optional. Nicolet iG50 Sampling Interface Front-mounted Standard or Extended. Purgeable and accommodates full-size accessories. Standard plate supports TE-DTGS detectors. Compatible with rack mount enclosures. Extended Sample Plate compatible with LN2-cooled MCT and other Nicolet iS50 compatible detectors. Nicolet iG50 External Detector Module Purgeable stand-alone module including detector focusing mirror. No sampling interface. Must select collimated or focused beam input.
电源	100–240 VAC, 2.5 A, 50–60 Hz
深度（英制）	16.5 in
深度（公制）	42 cm
源类型	Polaris™ High Stability, Long Lifetime Source (5 year warranty)
光谱范围	7800–350 cm^-1 KBr Beamsplitter 6000–650 cm^-1 ZnSe Beamsplitter
描述	Nicolet iG50 FT-IR Spectrometer
光谱分辨率	0.5 cm^-1
检测器类型	Options TE-cooled DLaTGS (KBr window) 12,500–350 cm^-1 TE-cooled DLaTGS (BaF₂ window) 12,500–800 cm^-1 (non-hygroscopic, for industrial environments) MCT-High D* 11,700–800 cm^-1 MCT-A 11,700–600 cm^-1 MCT-B 11,700–400 cm^-1 Customer Supplied Detector Interface
Output	Beam Output Options: Front or right side
框架材料框架材料	Cover: 304 Stainless Steel Baseplate: Aluminum Alloy Steel
包括	Standard features: 90° Michelson Dynamically Aligned Interferometer Polaris High Stability, Long Lifetime Mid-IR 1.5”(38 mm) Collimated Front Output Beam Continuously Variable Iris Aperture Aluminum Coated Mirrors Validation/Attenuation Wheel 24 bit A/D Converter USB 2.0 Interface Helium Neon (HeNe) reference laser Configurable front or side collimated beam output Continuous On-Board Hardware Monitoring User replaceable components: Source, Laser, Detector, Power Supply, Electronics Module Automated Performance Verification Testing Thermo Scientific™ OMNIC™ Software
灵敏度	Ordinate Linearity 0.07%T Wavenumber Precision Better than 0.01 cm^-1 Scan Velocity (15 Values) 0.158–6.28 cm/sec

返回顶部

描述

The Nicolet iG50 spectrometer offers high-performance to meet the broadest range of demanding applications such as Volatile Organic Compound (VOC) analysis, continuous emission monitoring (CEM) for smokestack emissions and other chemical process gas applications. With interchangeable optical and sampling interface modules, the iG50 system can be customized to fit the unique requirements of industrial process monitoring applications.In addition, the Nicolet iG50 system offers continuity from lab to plant with common formats and workflows enabling lab support when troubleshooting plant issues.

For demanding applications, the Nicolet iG50 spectrometer provides:

High spectral resolution needed to isolate sharp gas sample spectral bands from interfering species.
Excellent signal-to-noise (S/N) performance allows minimum detectable limits (MDL) of part-per-million or lower, while simultaneously measuring high-concentration components at percent level concentrations.
Rapid scan capabilities allow characterization of high-speed transient events.
Support for dual-detector collection provides flexibility for research or multi-channel monitoring.
Optics are housed in a compact, stainless steel enclosure which fits into a standard 19” 6U industrial rack for stable performance in manufacturing settings.
Dynamic alignment optical controls maintain bench stability against external vibrations and temperature swings.
Built-in performance verification and on-board diagnostics provide bench performance status, both visually and digitally to external DCS systems.
Perform your own service and maintenance using pre-aligned replacement parts, keeping downtime to an absolute minimum.
Worldwide network of scientists and technical support staff are available to support method development, calibration transfer, and warranty service plans.

Applications: Process liquid and gas measurements; volatile organic compound (VOC) analysis; continuous emission monitoring (CEM); at-line film analysis

Why FT-IR?

Key benefits of Fourier Transform Infrared (FT-IR) spectrometers for industrial monitoring:

Measure multiple chemical compounds with one analyzer
Flexible dynamic range from parts-per-billion to percent levels
Continuous on-line monitoring with little or no sample handling
Stable calibrations, no need to re-zero and re-span on daily basis
Able to identify contaminants or incorrect formulations

Learn more ›

A Trusted Partner for Technology Integration

Through our Technology Partner Program, we can help you solve instrument integration challenges by combining our experience in technologies including FT-IR, FT-NIR, Microanalysis, Raman, and UV-Vis with your applications and process expertise. Whether you deploy analytical systems within your own company or resell value-added solutions to others, we are here to help. Learn more about our Technology Partner program and capabilities..

Learn more ›
