差压式风速计EJH-37954-10 订购编号:EJH-37954-10
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

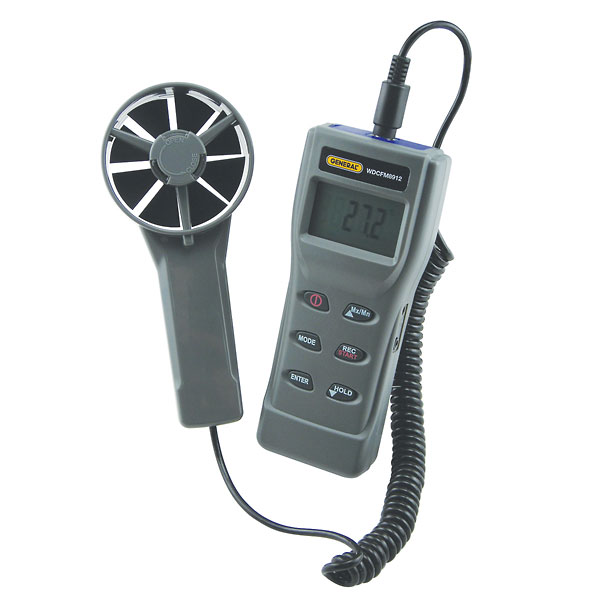

General Tools WDCFM8912 BTU Vane Thermoanemometer
Item# EJH-37954-10
Accessories
Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00
Calibrations
NIST-Traceable Calibration; Anemometers, Vane-Type
EJH-17101-01
-
- Measure energy capacity output of your ventilation system
- Ideal for furnaces, ovens, refrigerators, and air conditioners
This vane anemometer measures air velocity, air volume, BTU capacity, temperature, humidity, dew point, and wet bulb. Constructed with ball bearings, the vane sensor features a smooth and fluent rotation during measurements. Connected by a 20” (50.8 cm) extendable cord, allowing for limitless measurement applications. Meter features selectable English or metric units, single point averaging of air volume and capacity, and auto-off after 10 minutes.
What's Included:
Vane probe, four AAA batteries and a carrying case
| Specifications | ||
| Product Type | Vane Anemometer | |
| Range |
Air velocity: 1 to 114 ft/sec (0.3 to 35 m/s) Air volume: 0 to 99,999 ft3/min ( 0 to 99,999 m3/min Capacity: 0 to 99,999 BTU/h (0 to 99,999 kW) Wet bulb: -7.6 to 158°F (-22 to 70°C) |
|
| Temp resolution | 0.1°F/C | |
| Accuracy |
Air velocity: ±5% Air volume: ±5% Capacity: ±3% Wet bulb: ±1°F (±0.6°C) |
|
| Temp range | -4 to 140°F (-20 to 60°C) | |
| Temp accuracy | ±1°F (±0.6°C) | |
| Model | WDCFM8912 | |
| Qty/ea | 1 | |
| RH range | 0 to 100% | |
| RH resolution | 0.10% | |
| RH accuracy | ±3% from 10 to 90%, ±5% the remaining range | |
| Manufacturer number | WDCFM8912 | |
| Brand | General Tools | |
| Display | 5-digit LCD, 0.7" H | |
| Dimensions |
Meter: 2 1/2" W x 6 1/4" H x 1 1/8" D Vane: 3" W x 6 1/2" H x 1 1/2" D |
|
| Dew point range | -90 to 158°F (-68 to 70 °C) | |
| Dew point resolution | 0.1°F/C | |
| Dew point accuracy | ±1°F (±0.6°C) | |
| Power | four AAA batteries (included) | |
Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00
Calibrations
NIST-Traceable Calibration; Anemometers, Vane-Type
EJH-17101-01
