气流速度液压计 EJH-10271-35 订购编号: EJH-10271-35
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

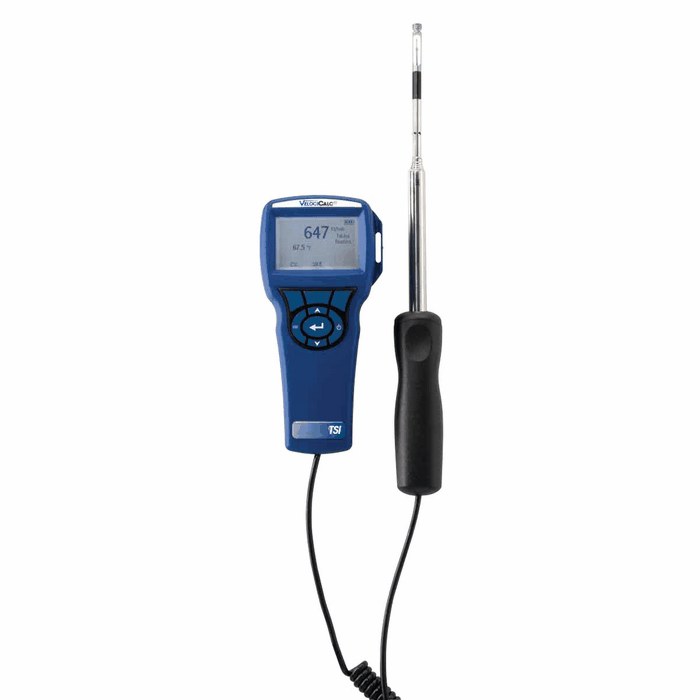

TSI 9535-A VelociCalc Air Velocity Meter; Articulating Probe/Manual Log
TSI | Mfr# 9535-A | Item# EJH-10271-35
Accessories
Energizer Regular Alkaline Batteries, 1.5 V, AA, 4/pack
EJH-09376-01
Calibrations
NIST-Traceable Calibration; Anemometers; Hot-Wire Type
EJH-17100-11
-
- Thermoanemometers with fast and accurate airflow measurements
- Displays up to three measurements simultaneously
- Available with manual or continuous data logging
- Logs up to 12,700 samples and 100 test IDs
These meters simultaneously measure and datalog several ventilation parameters using a single probe with multiple sensors. They automatically calculate volumetric flow rate for round, square, and rectangular areas. All models measure velocity, temperature and calculate flow.Model 10271-35 includes a probe that articulates up to 90°. Auto shut-off preserves battery life, and a low battery indicator alerts user of battery condition.
What's Included:
Software, probe, USB cable, hard carrying case, four AA batteries, and calibration document supplied by the manufacturer.
| Specifications | ||
| Product Type | Hot-Wire Anemometer | |
| Temp resolution | 0.1°F (0.1°C) | |
| Temp range | 0 to 200°F (-17 to 94°C) | |
| Temp accuracy | ±0.5°F (±0.3°C) | |
| Qty/ea | 1 | |
| Manufacturer number | 9535-A | |
| Brand | TSI | |
| Air velocity range | 0 to 6000 ft/min (0 to 30 m/s) | |
| Air velocity resolution | 1 ft/min (0.01 m/s) | |
| Air velocity accuracy |
±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater |
|
| Display | 4-digit LCD, 0.6" H | |
| Logging intervals | 1 second to 1 hour | |
| Velocity range | 0 to 6000 ft/min (0 to 30 m/s) | |
| Velocity resolution | 1 ft/min (0.01 m/s) | |
| Velocity accuracy | ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater | |
| Dimensions |
Meter: 7"L x 3-3/8"W x 2"D (17.8 x 8.6 x 5.1 cm) Probe: 8"L x 3/8"dia (20.3 x 1.0 cm) |
|
| Time constant | User selectable | |
| Power | four AA batteries (included) | |
Accessories
Energizer Regular Alkaline Batteries, 1.5 V, AA, 4/pack
EJH-09376-01
Calibrations
NIST-Traceable Calibration; Anemometers; Hot-Wire Type
EJH-17100-11
