Troemner Avoirdupois Slotted Weights, 10LB 6"dia
Troemner | Mfr# 9494 | Item# EJH-11966-62
Calibrations
Calibration Service For mass 2.01 To 50 Lbs; Astm 4-7, NIST F; Oiml M1, M2, M3
EJH-17108-42
-
- Use in a variety of applications such as pressure, torque, and tensile strength testing
- Use several slotted weights together to build up from a minimum weight to a maximum test load
- A durable coat of paint protects each weight from rusting and chipping
- Color coded – silver for avoirdupois

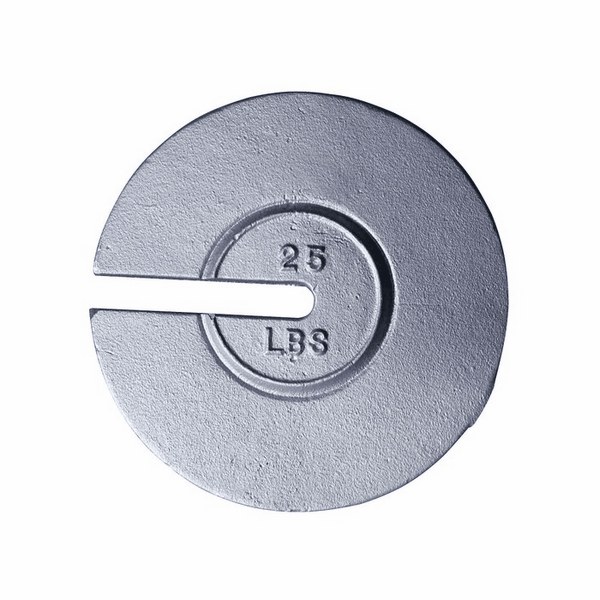

Cast Iron Slotted Weights are used in a variety of applications such as pressure, torque, and tensile strength testing. Cast Iron Slotted Weights are typically used with a hanger that also has its weight calibrated so the hanger can be used as part of the overall weight under test. Several Cast Iron Slotted Weights may be used together to build up from a minimum weight to a maximum test load. The hanger weight selected should be able to accommodate the total load needed.
Cast Iron Slotted Weights above 2 kg/5 lb have adjusting cavities. Weights below 2 kg/5 lb are adjusted by removing material from the underside of the weight. Each weight has its nominal value cast into the topside of the weight.
What's Included:
all weights include noted documentation of accuracy from the vendor , not supplied in a case
| Product Type | Cast Iron Weight | |
| Class | Class 6 | |
| Mass (lbs) | 10 | |
| Thickness | 1-1/2" | |
| Diameter | 6" | |
| Slot | 9/16" | |
| Certifications | None | |
| Qty/ea | 1 | |
| Brand | Troemner | |
| Model | 9494 | |
| Manufacturer number | 9494 | |
Calibration Service For mass 2.01 To 50 Lbs; Astm 4-7, NIST F; Oiml M1, M2, M3
EJH-17108-42
